8 glass bottles washer filler capper bottle filler

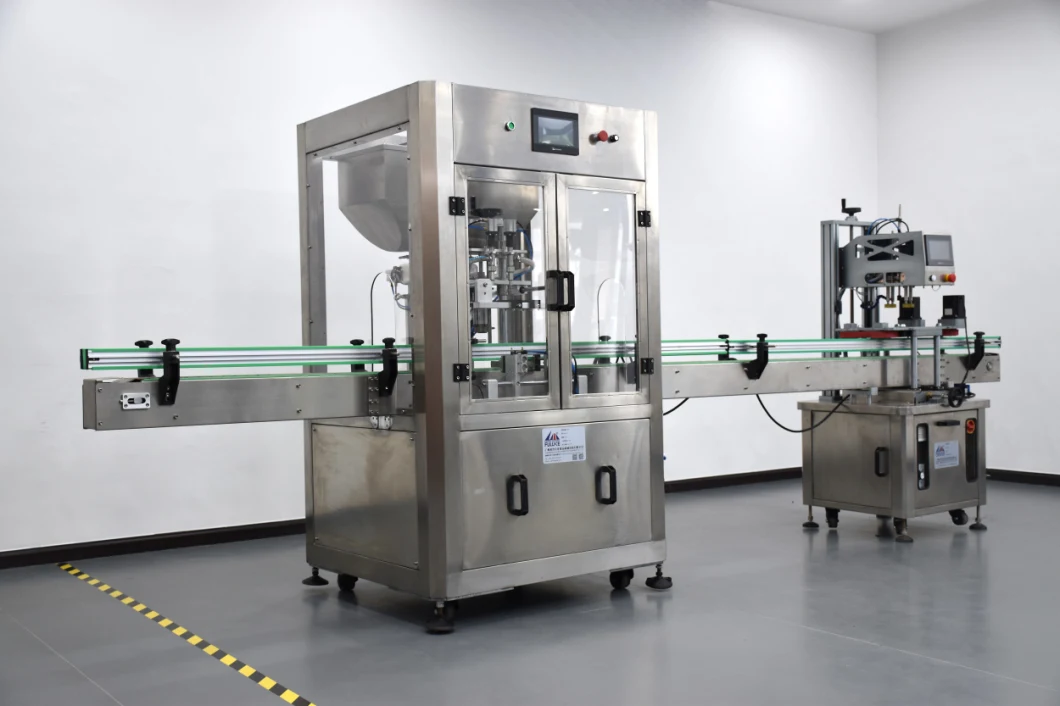

FGJ-Y series linear filling machine for filling creams and lotions and meet GMP manufacturing, the filling machine using in the form of servo motor as the driving force to ensure the accuracy of the filling, the filling is driven by a servo motor to drive with two feed cylinder piston to ensure the synchronization of the filling material, and filling speed, filling volume adjustment and other more simple and fast. Piston filling nozzle has a special leak-proof means of filling no drawing, drip phenomenon, the use of imported filling piston seals, sealing, and long service life. When the bottle filling volume change, through the touch screen to adjust the motor sends instructions to complete the filling volume adjustment, compared with the conventional manual mechanical adjustment, more convenient and user-friendly. The main element is imported plus repeated testing to ensure the safe and reliable performance.
working flow: automatic (2-12) heads filling → put bottle cap by hand → Automatic capping → finished
2,filling way:Mitsubishi Japan precision servo motor drive piston filling
5,Bottle-shaped: Bottleneck: 30~110mm,Bottle diameter>20mm,round bottle or flat bottles
6, Applicable bottle height: 40 ~ 300mm (height adjustable)
7, filling capping production speed: 1800-2500b/h
8. The whole machine is SUS304 production, part of Hard alumina; access to some materials is SUS316; all quick connectors accommodate various joints; the required activities bearing parts are made in China;
9, using Japan's Mitsubishi PLC color touch screen control; pneumatic components used in all of Taiwan airtac; photoelectric sensing element Korean automatic ; Schneider Electric;
10, transmission line all length of 6 m, conveying speed adjustable output, wear PVC chain plate;
11, Total Power: ≈2.3kw, 220V / 50Hz; Air pressure 0.4 ~ 0.8Mpa;
The different model for your choose
|Model||Filling volume||Filling speed||Filling precision||Productivity||Air source pressure|
The rotary filling capping machine in one line suitable for vial bottle . smaller bottle
filling machine aseptic can be design to with heating system and mixing system for high viscosity products

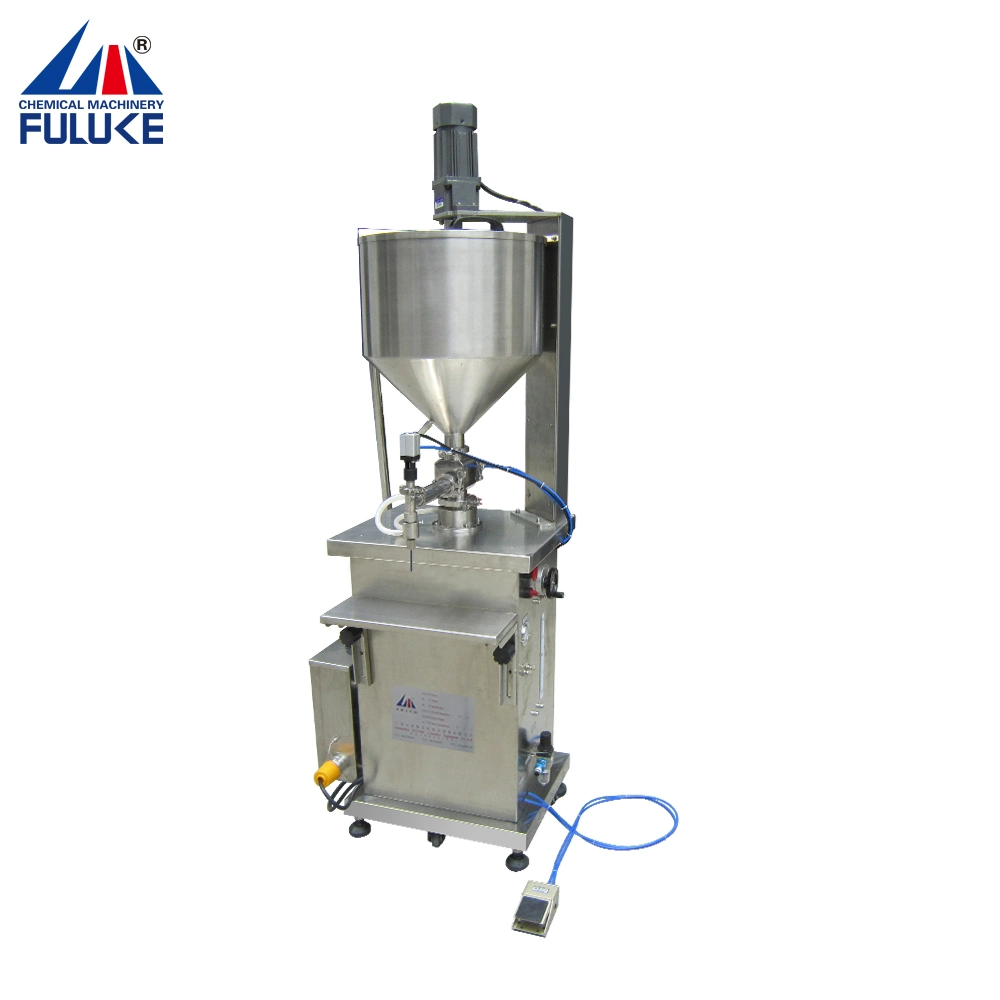

The semi-automatic filling machine aseptic
Automaic tube filling and sealing machine
Contact people : Manman Zhong
a. Small machine and equipment parts will be packed with PE roll,
b. Heavy equipment will be packed with standard wooden case.
c. As customer's requests
Delivery: 20-40 working days
Guangzhou Fuluke Cosmetic Chemical Machinery Co., Ltd. is a professional manufacturer of cosmetics making and packing machinery with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries.
The following are our products:
1) water treatment equipment (RO system)
2) Filling machines
3) Vacuum emulsifying mixer
4) Perfume maker
5) Anti-corrosion equipment and inkjet printer
6) Liquid filling and screw-cap sealing machines
7) storage Tanks
8) Laboratory equipment
9) Filter equipment
After sales service
1. Warranty service:
The above machine which we supply it to you, we can give you 15 month after sales warranty.
2. Maintenance services:
Any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
3. Lifelong services:
Tips: If we have parts in our warehouse,we will send within 24 hours, if we don't have it in our warehouse, we will manufacture it with our fast time.
we provide lifelong services for all the products we sold out, and supply the spare parts with discount price . Any damage except the wrong operation during warranty period is repaired freely. We guarantee that will send it to customer by DHL, Fedex, UPS etc.
Contact : Manman Zhong
