|Washing heads||8||Vacuum pump||0. 20m3/h|
|Filling heads||8||Power(ABB MOTOR)||main motor: 1.5KW |
hopper motor: 0 .18KW
vacuum pump motor: 1.1 KW
chain motor: 0.75KW
|Bottle type||height:150~ 300mm|
bottle neck: 50~85mm
bottle diameter: 50-75mm
|Working voltage AC||It can be customized by the|
customers' electrical conditions.
|Air consumption||0.15m3/min(0.4~0.6Mpa)||Control voltage DC||It can be customized by the |
|Water consumption||0. 8m3/h||PLC||SIEMEMS|
|Touch screen||SIEMEMS||Pneumatic element||Schneider|
8-8-3 Glass Bottle Fillng Machine description :
The machine is the latest design of the beer filling machine 3 in 1 type. It adopts external filling valves, all filling
valves were hung on outside of the beer tank which has no contact with the beer inside. The can guarantee the
beer won't have any bacteria infection risk. More stable and reliable than original design.
Automatic beer bottle rinsing, filling , capping triblock machine main parts are automatic electronic control filling
valve, vacuum, preparation of pressure (Co2), the photoelectric liquid level detection, automatic filling process,
CIP cleaning system, bottle deformation pieces, easy-won parts.
40-40-10 Glass Bottle Beer Filling Machine
The machine is adopts counter pressure filling technology, this machine is specially designed for beer filling.
The machine has the advantages of high speed, reliable output, compact design and stable operation. The
machine suitable for medium or large capacity breweries.
16-16-6 Glass Bottle Beer Filling Machine
The 16 heads filling machine designed by HEM Company adopts the counter pressure filling technology which
can perfectly realize the requirments of twice vacuum, Co2 injection. The machinealso adopts 3in 1 compact
design, easy to operate and maintain.

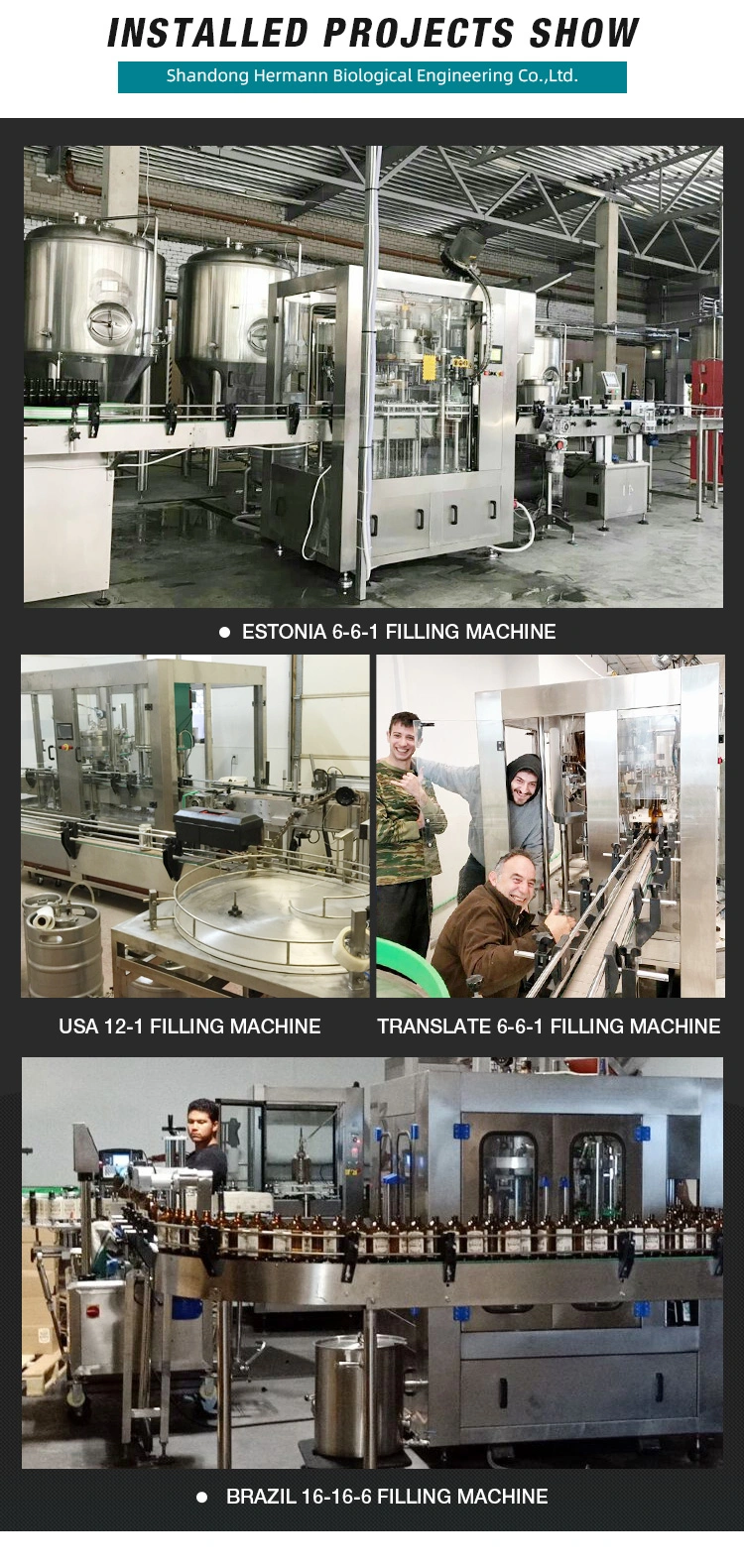

6-6-1 Glass Bottle Filling Machine
6-6-1 type beer bottle washing filling capping monoblock is designed combined with the actual situation in
our country after the introduction and absorption that comes from Germany technologies. It adopts isobaric
filling principle and filling valve adopts high precision mechanical valve. It has advantages of taking small
space, high precision in liquid level. Adopt Siemens automatic controlling system, realizing trinity of the
machines, and control the rinsing , filling and capping process.
(1). Capacity: 800-1000BPH.
(2). External filling valve: more stable and sanitary.
(3).Two times of vacuuming: keep your beer pure, prolong its shelf life.
(5). All-mechanical transmission: it will be more stable.
(6). Mechanical three capping heads: worked more harmoniously.
(7). With foaming device: keep the beer quality.
|Item||Production capacity||Filling method||Material||Dimensions|
Our Sevices :
(1). Manules / Videos of machine installation, adjusting, setting, maintenance are available to you.
(2). If any problems occured and you can not find out the solutions, Telecom or Online face to face communication are available around 24 hours.
(3). HEM engineers & technician are ready to your countries for services if you agree to pay the expenditure.
(4). The machine will have 1 year warranty. During the warranty year, if any of the parts are not broken because
of misoperation, we guarantee to replace free of charge. The warranty will start counting after the machine is
sent out and you received the machine.
(5). HEM company has an independent team for after-sale service. If any emergency please call the saleman or
our after-sale's manager.
