Biobase 120L laboratory automatic glassware washer

BIOBASE 120L Lab Automatic Glassware Washer  Introduction of Lab Automatic Glassware WasherThe lab glassware washers integrate programmed cleaning, disinfecting and drying functions to clean all glassware stuff, for beaker, flask, pipette, petri dish, burette, measuring cylinder, test tube etc.Features of Lab Automatic

Featured Products

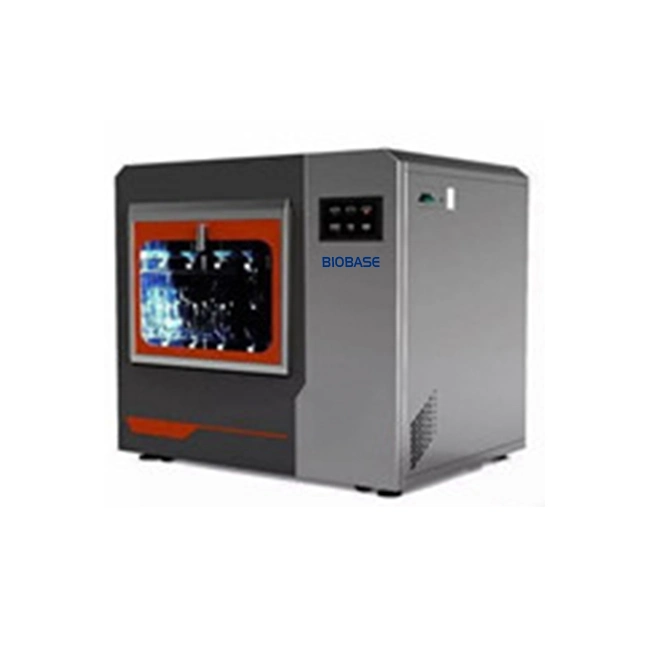

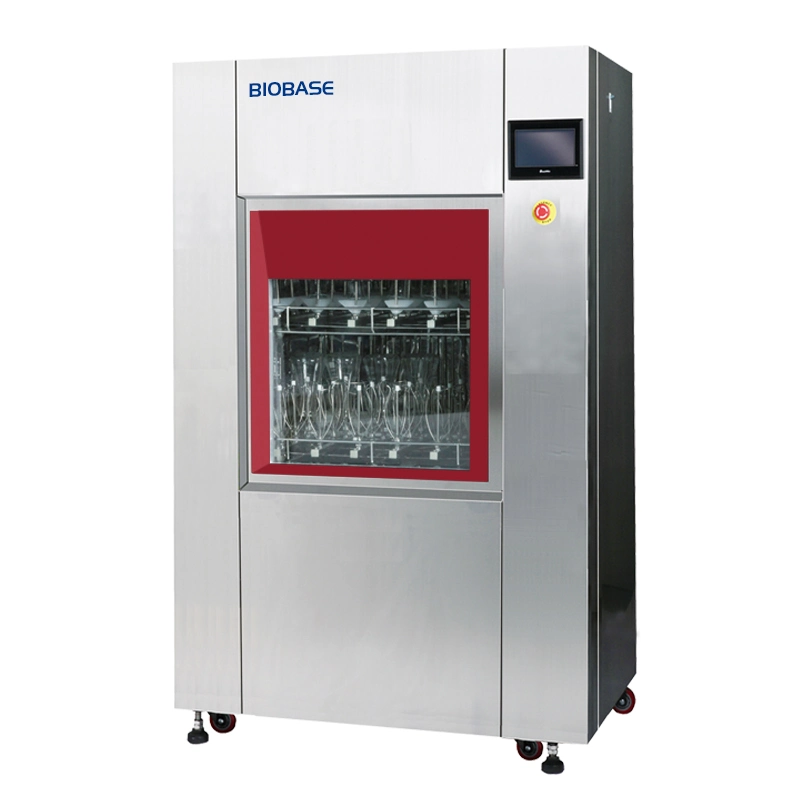

BIOBASE 120L Lab Automatic Glassware Washer


Introduction of Lab Automatic Glassware Washer

The lab glassware washers integrate programmed cleaning, disinfecting and drying functions to clean all glassware stuff, for beaker, flask, pipette, petri dish, burette, measuring cylinder, test tube etc.

Features of Lab Automatic Glassware Washer

1. High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles, and self-cleaning program;

2. Rapid and efficient drying system, designed with independent air heater, HEPA filter and  drying process;

3. Water heating temperature can reach 99ºC, while hot air drying temperature can reach 120ºC;

4. Professional configuration design-stainless steel for corrosion resistance;reinforced glass window mounted to achieve a clear view on washing process;

5.PLC touch screen control with preset 6 programs and 99 cutomized programs

6. Safety protection-electronic security door lock to prevent unexpected door opening, water & drying air temperature dual control and equipped with emergency switch.



Standard Washing Procedure (can be self-designed by the user) of Lab Automatic Glassware Washer

Pre-cleaning→Washing with cleaner→Rinse→Washing with neutralization→Rinse→Washing with hot water→Drying

Biobase 120L Lab Automatic Glassware Washer

Biobase 120L Lab Automatic Glassware Washer



Technical Parameters of Lab Automatic Glassware Washer


Model

BK-LW120

BK-LW220

BK-LW320

BK-LW420

Capacity

120L

220L

320L

420L

Water Consumption/Cycle

15L

25L

Inlet Water Pressure

0.03~0.8Mpa

Noise

≤50dB

≤55dB

Material

Internal materia: SS316, Outer material: SS304

Overall Power Consumption

6KW

6.5/16.5KW

6.5/18KW

18kW

Power Consumption-Water Washing

0.75KW

1.5 KW

2.8KW

Power Consumption-Water Heating

5KW

5/15KW

15KW

Power Consumption-Drying

2.1 KW

3.6KW

Power Supply

AC220V, 50Hz

AC220V, 50Hz; 380V, 50Hz

380V, 50Hz

Cleaning Racks

1 pcs

2 pcs

3 pcs

2 pcs

Standard Cleaning Racks

BKIR36*1

BKIR36*2

BKIR36*3

BKIR36*2

Standard Accessories

One bucket RBS A 155 leaner (1 L), One bucket RBS A 375 neutralizer (1 L)

Optional Accessories

USB interface, printer, Cleaning racks

Cleaning racks

Washer Chamber Size(W*D*H)mm

600*629*465

600*629*658

600*629*820

688*700*703

External Size(W*D*H)mm

960*740*850

780*690*1760

790*690*1950

1100*900*2165

Package Size(W*D*H)mm

1100*950*1050

1000*850*2100

1000*840*2180

1270*1025*2240

Gross Weight(kg)

145

330

350

400



Certificates of BIOBASE:

ISO9001, ISO14001, ISO13485, CE, MET,  , EN12469, FDA, etc.
