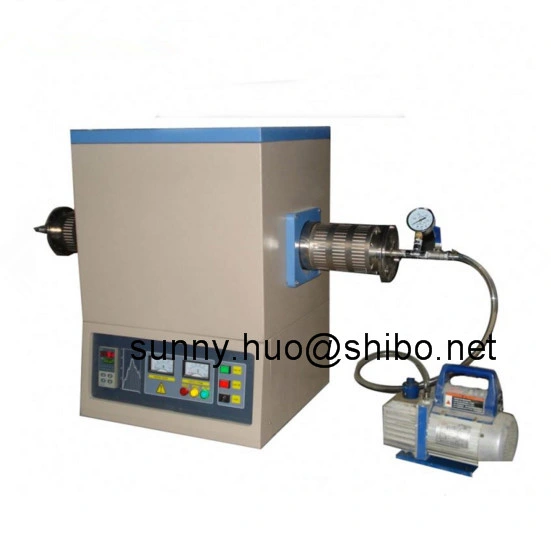

Tube-1700 tube lab furnace uses high quality MoSi2 heater as heating element, adopting 50segments programme to control the temperature. The chamber is used polycrystalline alumina fiber. Double shell structure with air cooling system ensuring the furnace rise and cool quickly; The furnace can be connected to vacuum pump, which is optional according to customers' requirement.

Main features:
1. The furnace uses high quality polycrystalline alumina fiber as chamber material, saving energy, small volume, fast temperature rising and cooling.
2. High quality 1800C U type MoSi2 heaters as heating element greatly improving the using life, perfect double shell design with colling fan ensuring the furnace rise and cool fast.
3. Side open door, when the door is open, the power cut off automatically;
4. Over-temperature alarm and power failure, leakage protection, safe and easy operation.
5. CE certified

Specification:
Chameber Size: 60/50*300mm (OD: 60mm, ID: 50mm, Hot zone: 300mm, Total tube length: 1000mm
Max. Temperature: 1700C
Work temperature: 1600C
Temperature control: 51 segments programable and PID auto control
Heating elements: MoSi2 heater
Thermocouple: B type
Heating rate: ≤ 10C
Temperature accuracy: +/-1C
Max vacuum: 10PA
Voltage: AC220V(or customized AC380V), 50/60Hz
Warranty time: 1 year
Certificated: CE




Main application:
metallurgy, machinery, light industry, commodity inspection, institutions of higher learning and scientific research departments.
