Product Description

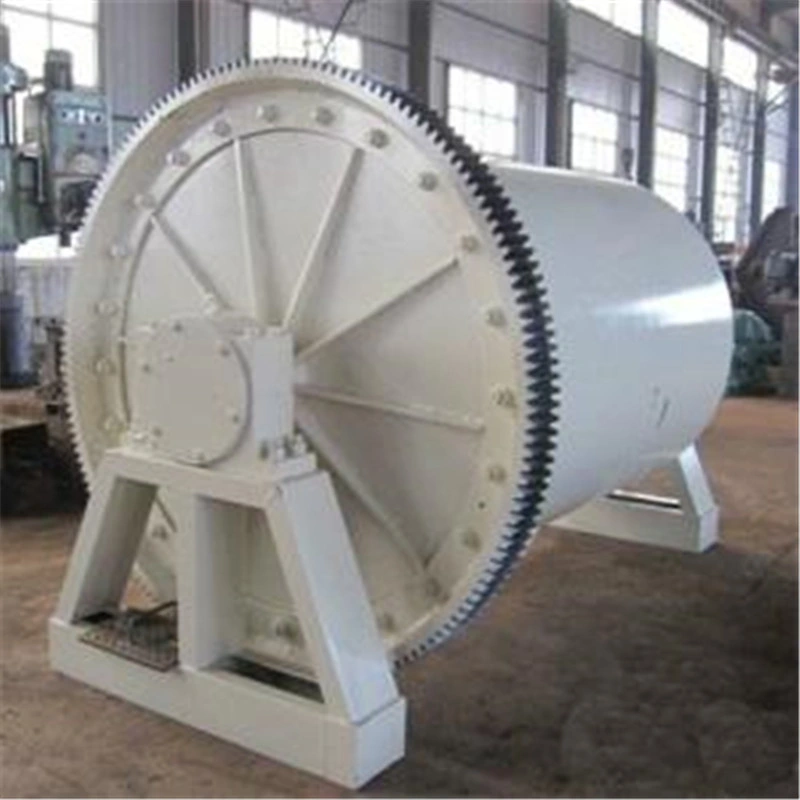

Ball Mill is widely used for the dry or wet grinding of all kinds of ores and other grindable materials in the production industries of kaolin, quartz, feldspar, cement, silicate product, new building material, refractory, fertilizer, ferrous metal,non-ferrous metals and glass ceramic industry. etc.
Ball mill main parts : feeding part ,discharging part, ball mill cyclinder, transmission (reducer, gear, pinion, electric motor and electric control) and other major parts.
| Model | Rotation speed (r/min) | Weight of grinding media (ton) | Size of feed opening (mm) | Discharge size (mm) | Capacity (t/h) | Power (kw) | Weight (T) |
| Φ 900x1800 | 38 | 1.5 | ≤ 20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| Φ 900x3000 | 38 | 2.51 | ≤ 20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
| Φ 1200x2400 | 32 | 3.8 | ≤ 25 | 0.075-0.6 | 1.5-4.8 | 30-45 | 12.5 |
| Φ 1200x3000 | 32 | 5 | ≤ 25 | 0.074-0.4 | 1.6-5 | 30-45 | 12.8 |
| Φ 1200x4500 | 32 | 7 | ≤ 25 | 0.074-0.4 | 1.6-5.5 | 55 | 13.8 |
| Φ 1500x3000 | 27 | 8 | ≤ 25 | 0.074-0.4 | 2-5.8 | 75-90 | 17 |
| Φ 1500x4500 | 27 | 14 | ≤ 25 | 0.074-0.4 | 3-6.5 | 110 | 21 |
| Φ 1500x5700 | 27 | 15 | ≤ 25 | 0.074-0.4 | 3.5-8 | 132 | 24.7 |
| Φ 1830x3000 | 24 | 11 | ≤ 25 | 0.074-0.4 | 4-10 | 180 | 28 |
