By the fast growth and developing of drinks industry, the packing of drinks also got a big demand. It is a important issue for recycling and re-using the used drinking bottles. Retech Machinery supplier various capacity of PET bottle recycling line from 500kg/h-3000kg/h.

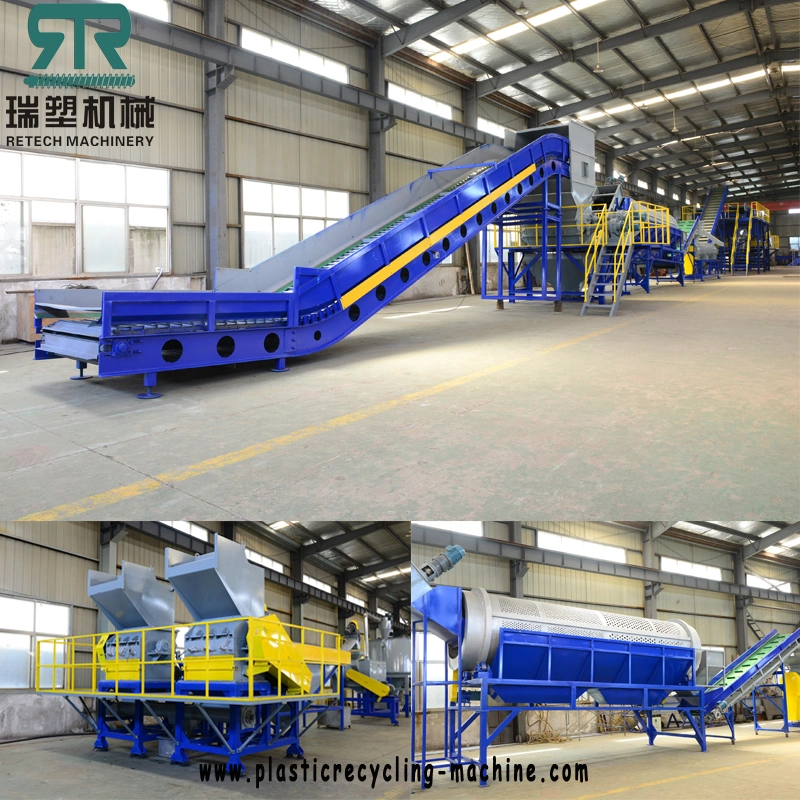

This PET bottle washing line is designed and manufacture by Zhangjiagang Retech Machinery Co.,Ltd,we can make 500kg/h,1000kg/h,2000kg/h,3000kg/h models according to customer's requirement. With rich experience on design of PET bottles recycling machine,we can do customized OEM production.
1. The material is mainly PET bottles, including water bottles, cola bottles…
2. The main parts of the PET washing recycling plant is label separating, crushing, cold and hot washing, caps separating, dehydrator and drying parts.
3. The capacity of the PET washing recycling plant is from 500kg/h to 3000kg/h.
4. There crusher is to crush the rigid material into small pieces with size from 1mm to 15mm depending on customers' need.
5. Mechanical label separator and zigzag label separator can ensure to remove the labels thoroughly.
6. Sinking swimming tank can not only remove dirties of the flakes, but also can remove the caps out.
7. High speed friction washer and hot sinking swimming tank can remove the strong dirties, like the grease, oil, glue.
8. By dehydrator and drying system, the final products plastic flakes moisture level can be lower than 1%.
9. The final products PET flakes, the PVC level is lower than 150PPM, the impurities level is lower than 100PPM.
10. The PET flakes can be taken directly to make the fibers, straps, and also can be granulated to be granules.
Belt conveyer→mechanical label separator→manual sorting→metal detector→belt conveyer→wet crusher→screw conveyer→floating washer→screw conveyer→hot washer→screw conveyer→high speed friction washer→screw conveyer→floating washer→screw conveyer→vertical dewatering machine→drying system→zigzag label separator→storage silo---operating panel
PET Label separation remover machine is working to peel off the label on the bottles.It is running with moving and fixed blades for removing the bottles/labels.
The high efficient label removing performance is getting 90%.
# Hot washer
PET flakes hot washing unit is used to clean the crushed PET flakes,here the temperature is from 70-90 degree to heat the flakes and get better washing. You can add chemical soda into the tank for the best washing effect. The content rate of chemical and water is 3%-5%.
The PET flakes will stay here for about 30 mins by slowly moving and washing.
# Friction washer
High speed friction with centrifuge force can be friction the PET flakes and clean it, here after hot washing unit,the friction washer can be remove the chemicals by centrifuge force.The flakes will be more dry and clean before going into cold washing unit.
The main rotor adopt dynamic banlance treatment,running stable.Equipped with SKF or NSK bearing for long time running.
PET Bottle Washing Machines Technical Parameters:
|2||Mechanical label separator||18.5~22kw||3200*1200*2500mm||4000kg||Necessary|
|8||Cold rinsing washer||3~5.5kw||5500*1900*2200mm||2300kg||Necessary|
|12||High speed friction washer||22kw~37kw||3000*900*1700mm||2700kg||Optional|
|14||Cold rinsing washer||3~5.5kw||5500*1900*2200mm||2300kg||Necessary|
|16||Vertical dewatering machine||45~55kw/||1800*1800*2000mm||2200kg||Alternative|
|18||Air label separator||3kw~7.5kw||1800*1000*3600||900kg||Optional|
Advantages of our Washing Recyling Machines:
Safety: All our machines are made according to the CE standard. All rotating parts with safe fence or cover in case of any men body damaged. The maintenance opening parts are equipped with limited switch. All lines are quipped with emergency switch.
Material: All parts contacted with material are made of stainless steel SUS304 with thickness 3~6mm.
Long-life running: All steel parts are treated with anticorrosion, all stainless steel are SUS 304 with acid washing treatment.
Designing: All plants designed base on the real situation of customers' material and our many years experience manufacturing the machines.
Energy saving: With reasonable designing to the structure of the plant, it can not only wash the material clean but also can help the custom to save power consumption which means to help customer create more profit.
Customer requirements →Scheme designed →confirmed by customers →order fixed →manufacturing →trial running in our factory →confirmed by customers →shipped →engineer available overseas →whole life after sales services
RETECH is an experienced and professional manufacturing for series plastic washing recycling machine/ plastic granulating recycling machine including ET bottle recycling machines, PE PP film recycling machines, plastic PE PP PS ABS PET PC PVC LD HD LLD BOPP granulating line, water treatment for the waste water from washing line, and auxiliary equipment for plastic recycling....
If you are interesting more details of our products, please contact with us no hesitation!
